Technical Specifications
Features
- 2 constructions are available:
- Thickness: 2"
Sizes
- Widths from 8' to 20', in 1" increments
- Heights from 6'6" to 8', in 3" increments
Please contact us for more details on other available sizes.
NOTICE: The Regal 24, N24 and N25 18-inch-of-height section don’t have a bead line above and below the patterns.
8' high door layout
An 8’ Regal door has 5 sections
Outside layer in steel and available designs
Regal 241 | Regal N24 | Regal N25 | |
Outside layer | Commercial grade steel | Heavy duty steel | Steel |
Layouts | |||
Shaker‑Flat Short |
|
||

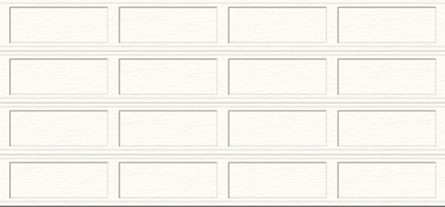

Shaker‑Flat Long |
|
||

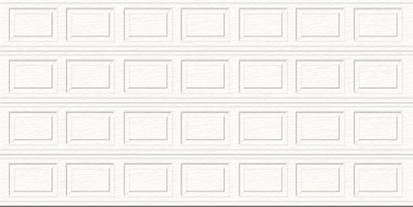

Classic Short |
|
|
|

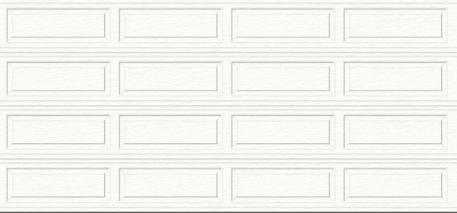

Classic Long |
|
|
|
Moderno Echo |
|
||
Flush |
|
|
|

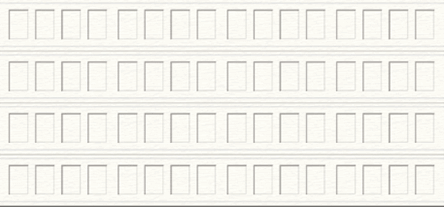

Shaker‑Flat XSmall |
|
|
|
Shaker‑CS Short |
|
|
|
Shaker‑CS Long |
|
|
|
Colours | |||
![]() |
White |
White |
White |
![]() |
Almond |
Almond |
|
![]() |
Sahara |
Sahara |
|
![]() |
Sandstone |
Sandstone |
|
![]() |
Terrastone |
||
![]() |
Brown |
||
![]() |
Black Ice |
||
![]() |
Dark Walnut, Faux Wood |
||
![]() |
Weathered Grey, Faux Wood |
||
![]() |
Charcoal |
Layouts

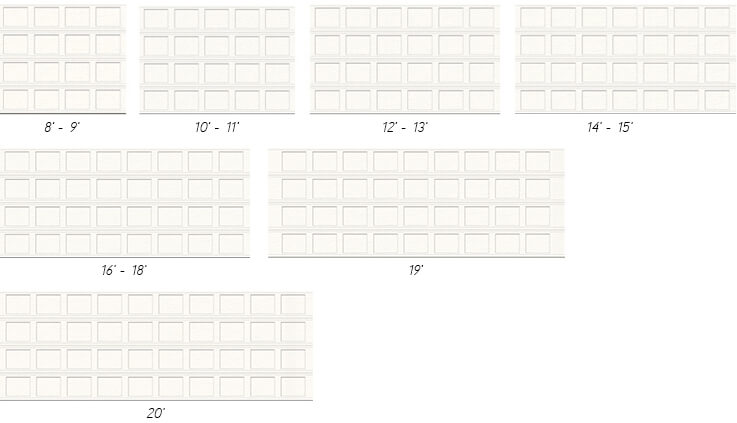

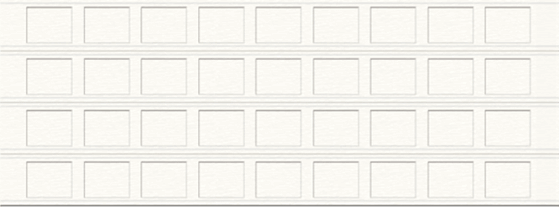

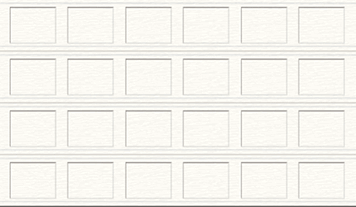

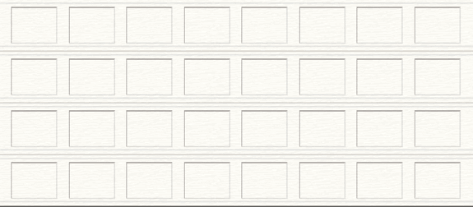

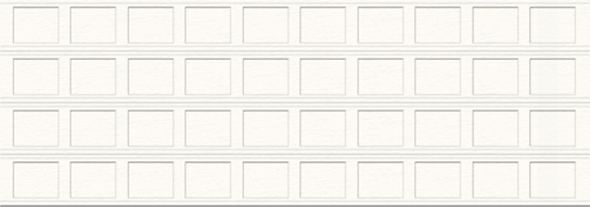

Shaker‑Flat Short (Regal N24) |
![]() |
8' to 11' |
![]() |
10' to 11' |
![]() |
12' to 15' |
![]() |
16' to 18' |
![]() |
19' |
![]() |
20' |

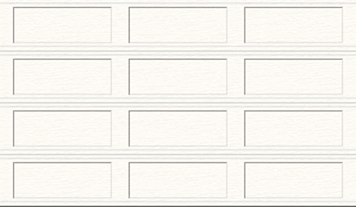

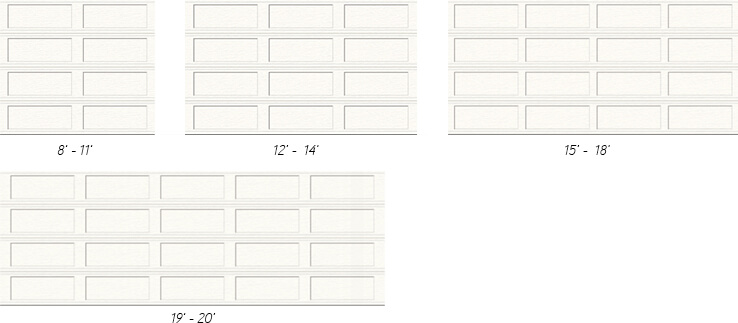

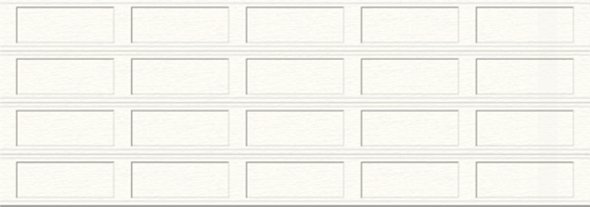

Shaker‑Flat Long (Regal N24) |
![]() |
8' to 11' |
![]() |
12' to 14' |
![]() |
15' to 18' |
![]() |
19' to 20' |

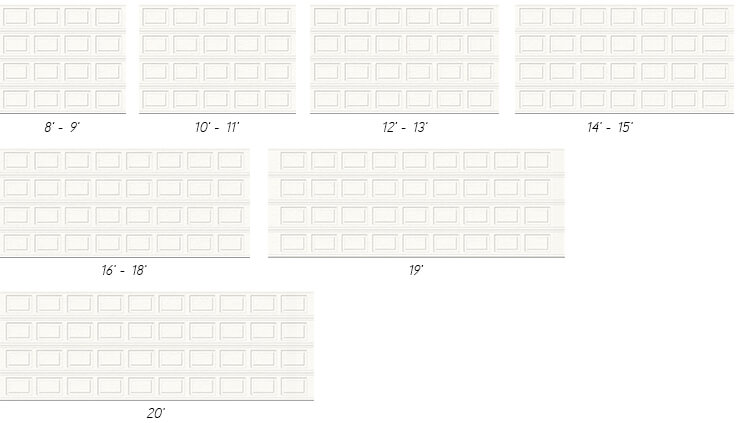

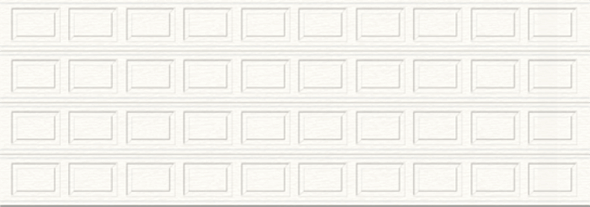

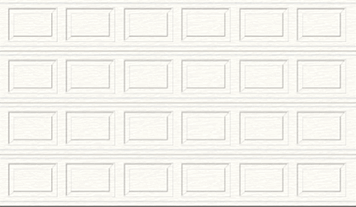

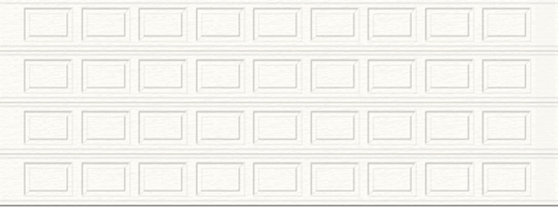

Classic Short (Regal 24, N24, N25)
|
![]() |
8' to 9' |
![]() |
10' to 11' |
![]() |
12' to 13' |
![]() |
14' to 15' |
![]() |
16' to 18' |
![]() |
19' |
![]() |
20' |

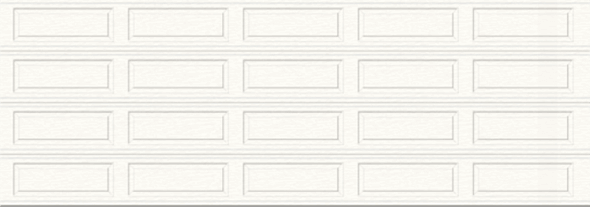

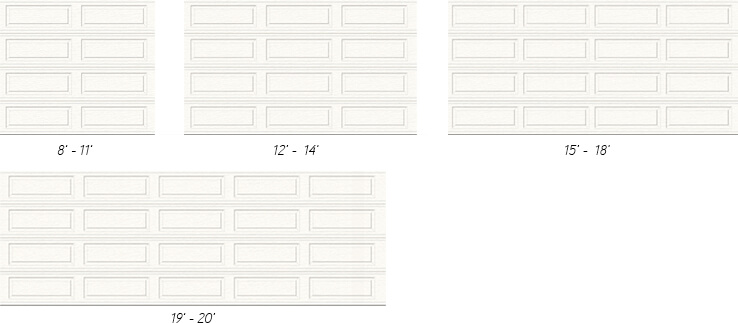

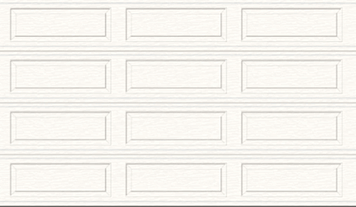

Classic Long (Regal N24, N25)
|
![]() |
8' to 11' |
![]() |
12' to 14' |
![]() |
15' to 18' |
![]() |
19' to 20' |
Flush (Regal 24, N24)

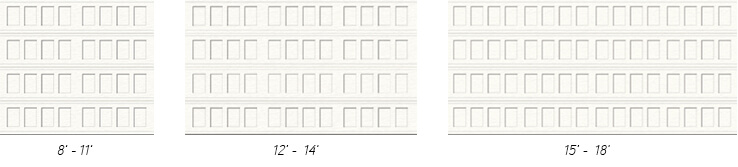

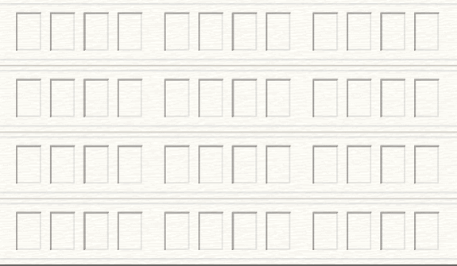

Shaker‑Flat XSmall (Regal N24, N25) |
![]() |
8' to 11' |
![]() |
12' to 14' |
![]() |
15' to 18' |

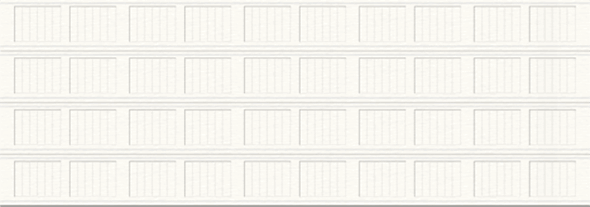

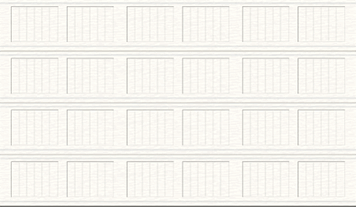

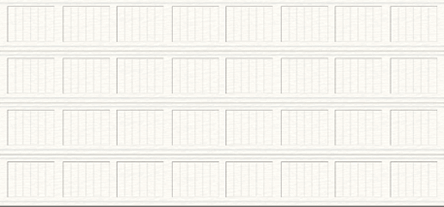

Shaker‑CS Short (Regal N24, N25) |
![]() |
8' to 11' |
![]() |
12' to 14' |
![]() |
15' to 18' |
![]() |
19' to 20' |

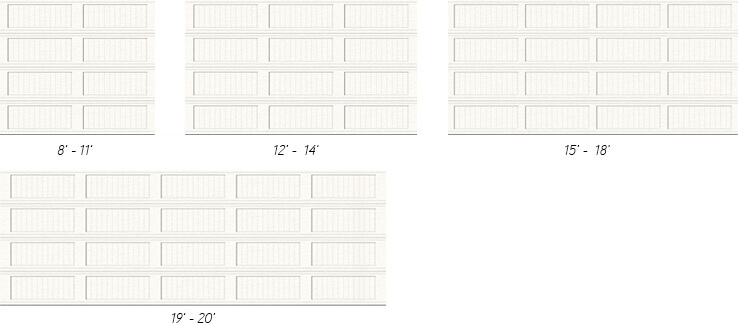

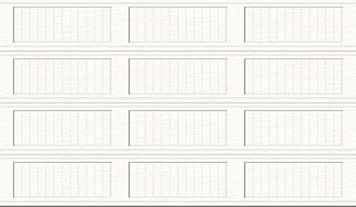

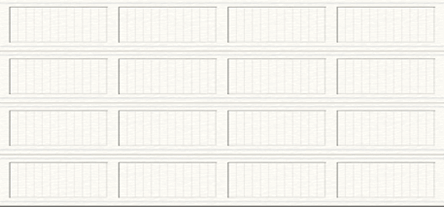

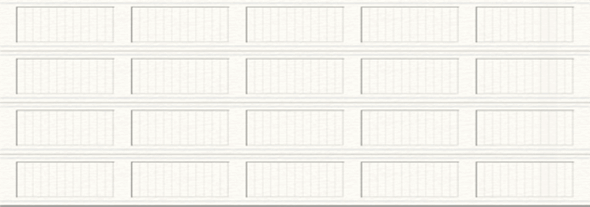

Shaker‑CS Long (Regal N24, N25)
|
![]() |
8' to 11' |
![]() |
12' to 14' |
![]() |
15' to 18' |
![]() |
19' to 20' |
Construction

2 layers (Steel + Polystyrene)
OR

Non-insulated
1
|
3 options for outside layer: steel, heavy duty steel or commercial grade steel for high durability |
2
|
2" tongue‑and‑groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety |
3
|
20‑gauge galvanized end and center stiles to increase strength and durability |
4
|
Vinyl‑backed polystyrene insulation available as an option |
1The Regal garage door model belongs to the Mid‑America series of products.
The models 2500 and Celebrity are now included in the Regal model and are named respectively the Regal N25 and Regal 24.
